Innovative Solutions - The Singapore

2024-08-29

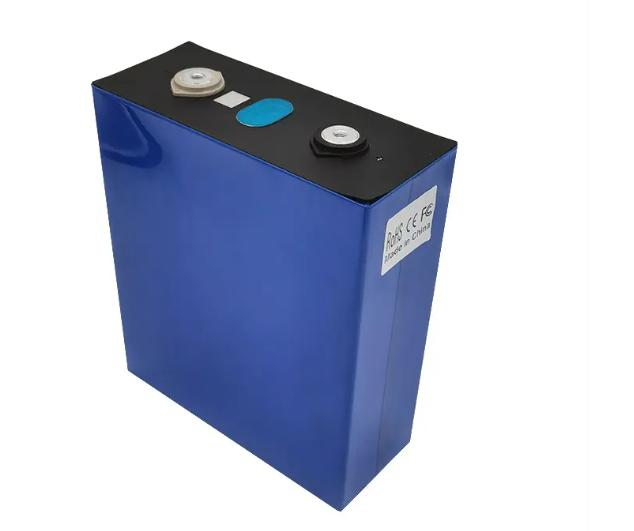

1.  Battery Cell

Battery cell:                               lithium iron phosphate(Li-FePO4)

Current/Voltage:                        150Ah/3.2V

Charge/discharge rate:               1C @25℃±3

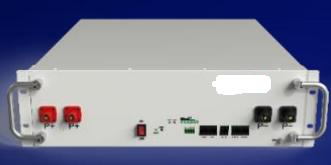

2.  Battery Pack (16 cells connected in series to form a battery pack)

NO

Name

Unit

Specification

1

Cell

1

LF150K

2

Nominal voltage per box

V

51.2

3

Single box power

Wh

7.68

4

Single box weight

Kg

63

5

Single box size

MM

500*482*161

6

Single box series and parale number

/

1P16S

7

Rated Capacity

Ah

150

8

Energy density

Wh/Kg

>140

9

Cooling method

1

air cooling

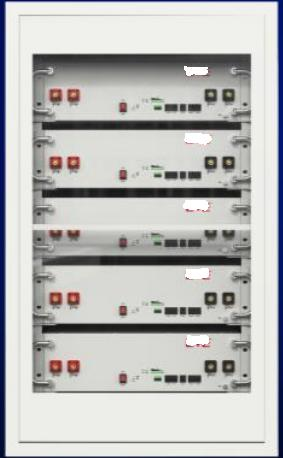

3.  Battery Cluster (14 battery packs connected in series to form a battery duster)

NO

Name

Unit

Specification

1

Nominal voltage

V

716.8

2

Nominal power

KWh

107.5

3

Series and paralle

/

1P224S

4

Change/discharge efficienc

1

292%

5

Low voltage power supply

W

=200

6

Communication mode

1

CAN2.0

7

Weight

KG

m1220

8

Overall Dimension

MM

630*600*2353

9

Cooling method

/

ar cooling

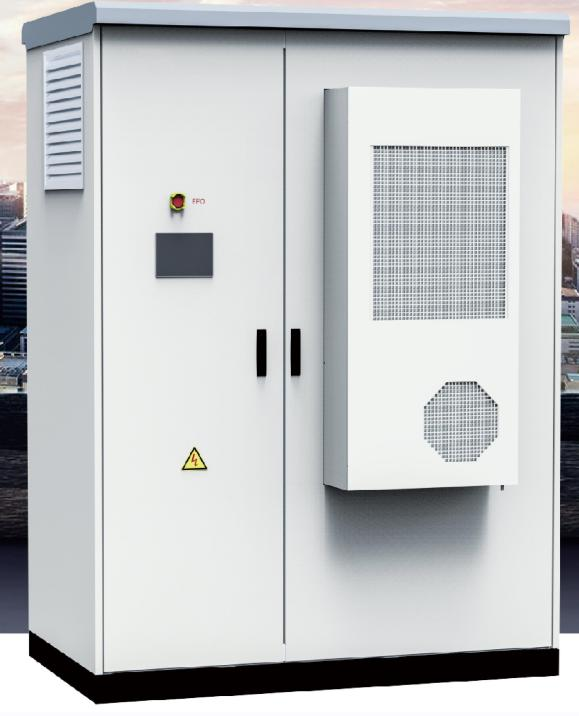

4.  Battery energy storage system cabinet (5 Battery clusters in parallel)

NO

Name

Unit

Specification

Mark

1

Nominal voltage

V

716.8



2

Nominal powe

KWh

537.5

@25℃±3

3

Voltage Range

V

595-817.6



4

Recommended SOC Window

%

10-9



5

Nominal charge/discharge power

KW

500



6

Chaging Temperature

0-50



7

Discharge Temperature

20-50



8

Recommende environment Temperature

25℃±10



9

Thermal Manaqement

1

air cooling



10

Dimension

mm

1100*1100*2553



11

PCS

DER

SINEXCEL 100KW*5

5PCS

12

Air Cooled Conditioner

pcs

10KW



13

Output Voltage

V

AC 400(three phase)



14

Output Frequency

HZ

50/60



15

Fire Fighting System



Hot Air Melt Level 3 Fire Protection



16

BMS



3 level-Management



17

EMS



Battery Energy Management Svstem
