1. Battery Cell

Battery cell: lithiumironphosphate(Li-FePO4)

Current/Voltage: 280Ah/3.2V

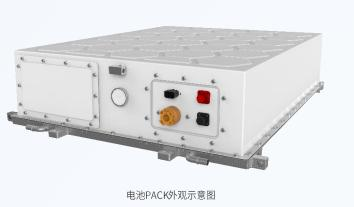

2. Battery Pack (48 cells connected in series to form a battery pack)

Battery Pack

NO	Name	Unit	Specification
1	Cell	/	LF280K
2	Nominal voltage per box	V	153.6
3	Single box power	KWh	43
4	Single box weight	Kg	300
5	Single box size	MM	1067858240
6	Single box series and parallel number	/	1P48S
7	Rated Capacity	Ah	280
8	Energy density	Wh/Kg	>140
9	Cooling method	/	Liquid cooling

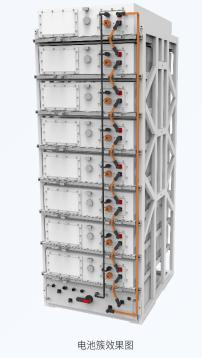

3. Battery Cluster (5pcs battery packs connected in series to form a battery cluster)

NO	Name	Unit	Specification
1	Nominal voltage	V	768
2	Nominal power	KWh	215
3	Series and parallel connection	/	1P240S
4	Charge/discharge efficiency	/	≥92%
5	Low voltage power supply	W	≈200
6	Communication mode	/	CAN2.0
7	Weight	KG	≈1200
8	Overall Dimension	MM	86210741614
9	Cooling method	/	Liquid cooling

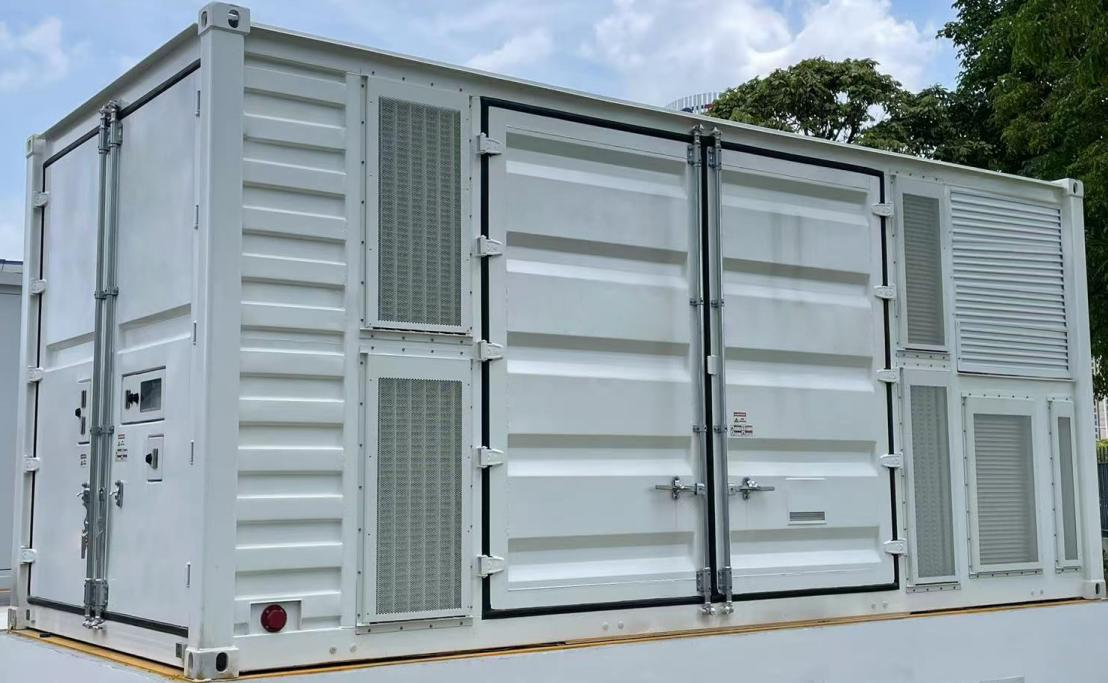

Battery energy storage system (5pcs Battery clusters connected in series to form a battery energy storage system) + BMS+PCS+Grid-connected convergence cabinet+liquid cooling system+fire-fighting system+BMS integrated into a 20inch container
NO	Name	Unit	Specification	Mark
1	Nominal voltage	V	832
2	Nominal power	KWh	2325	@25℃±3
3	Voltage Range	V	700-949
4	Recommended SOC Window	%	10-90
5	Nominal charge/discharge power	KW	1000	adjustable
6	Charging Temperature	℃	0-50
7	Discharge Temperature	℃	-20-50
8	Recommended environment Temperature	℃	25℃±10
9	Thermal Managemen	/	Lquid coolin
10	Dimension	mm	605828962438mm	20inch container
11	PCS	pCS	125kw AC 480	10pcs (SINENG)
12	Audiary Transtome	pcs	50KW	1pcs
13	Liquid Coole Conditioner	Pcs	30KW	1pcs
14	Output Voltage	V	AC480
15	Output Frequency	HZ	50
16	Fire Fighting System		Hot Air Melt Level 3 Fire Protection
17	BMS		3 levelManagement
18	EMS		Battery Enerngy Management System
19	Grid-connected convergence cabinet	pcs	1
20	Solar power charging time	Hours	5-6hours	200kwp
