NO

Name

Unit

Specification

1

Cel

/

LF2BOK

2

Mnmina voltage per box

V

153.6

3

Single bax power

kWh

43

4

Single bax weight

Kg

270

5

Single box size

MM

1067*858*240

6

Single box series and parallel number

/

1P48S

7

Rated Capacit

Ah

280

8

Energy density

WhKg

>140

9

Cooling method

/

Liquid cooling

NO

Name

Unit

Specification

1

Nominal voltage

V

1228.8

2

Nominal power

KWh

43

3

Series and parallel

l

1P384S

4

Charge/discharge efficiency

/

292%

5

Low yoltige power supply

W

=200

6

Communicatio mode

l

CAN2.0

7

Weight

KG

=2000

8

Overall Dimension

MM

862*1074*2374

9

Cooling method

l

Liquid cooling

NO

Name

Unit

Specification

Mark

1

Nominal voltage

V

1228.8

2

Nominal power

KWh

2064

@25℃±3

3

Voltage Range

V

1017-1401.6

4

Recommended SOC Window

%

10-90

5

Nominal chargel/discharge power

KW

1000

6

Changing Temperature

℃

0-50

7

Discharge  Temperature

℃

20-50

8

Recommended environment Temperature

℃

25℃±10

9

Themal Management

Liquid cooling

10

Dimension

mm

6058*28962438

11

DCDC

pcs

0

0

12

PCS

pcs

200KW

6PCS

13

Liquid Cooled Conditioner

pcs

30KW

14

Outout Voltage

V

690

15

Output Frequency

HZ

5060

16

Fire  Fighting System

Hot Air Melt Level 3 Fire Protection

17

BMS

3 level-Management

18

Auxiiany Transformer

pcs

50KVA

19

EMS

Battery Energy Management Syslem

DC side

NO

Name

unit

pechcatin

Mark

1

DC Maximum Input Voltage

V

1500

2

DC Rated Input Voltaqe

V

1228.8

3

DC lnput Voltage Range

V

1017-1401.6

4

DC Maximum input Current

A

1800

AC side

1

AC Output Power

KVA

2000

@30℃

2

AC Output Current

A

2890

PCS reduced power use

3

AC Output Voltaqe

KV

0.69

4

ACOulpu Voltage Range

V

620-76

5

AC Output Frequency

Hz

5060

6

Harmonic

!

53%

Grid connected side

1

AC Output

KV

20

2

AC Output Range

KV

19.8-24.2

3

AC Votage Distorfion

3%(liner load)

4

Load  unbalance degree

100%

5

Frequensy

Hz

50(45-55)/60(55-65)

6

Maximum Conversion Efficieney

298%

step-up transfomer

1

Transformer rated power

KVA

2000

2

Transformer Maximum Power

KVA

2200

3

LM/MV voltage

KV

0.69/20

4

Transformer Inkage group

DYN11

5

Transformer heat dissipation

method

air cooling

6

Transformer model

!

SCB13-2000KVA

proledion measure

1

DC input

prpledipn

1

Overload protecfion switch + fuse

2

PCS protecfion

overcurrent prolecfion

3

AC guipu protedion

l

overcurrent prolecfion

4

Anti-sutge protedion

l

DC/AC

5

Gnd monilorng protedign

l

yes

6

Grounding protedion

l

yes

7

nsulafion protedion

yes

8

Oveheaiing protedion

yes

NO

Parts name

Specitication

Qty

1

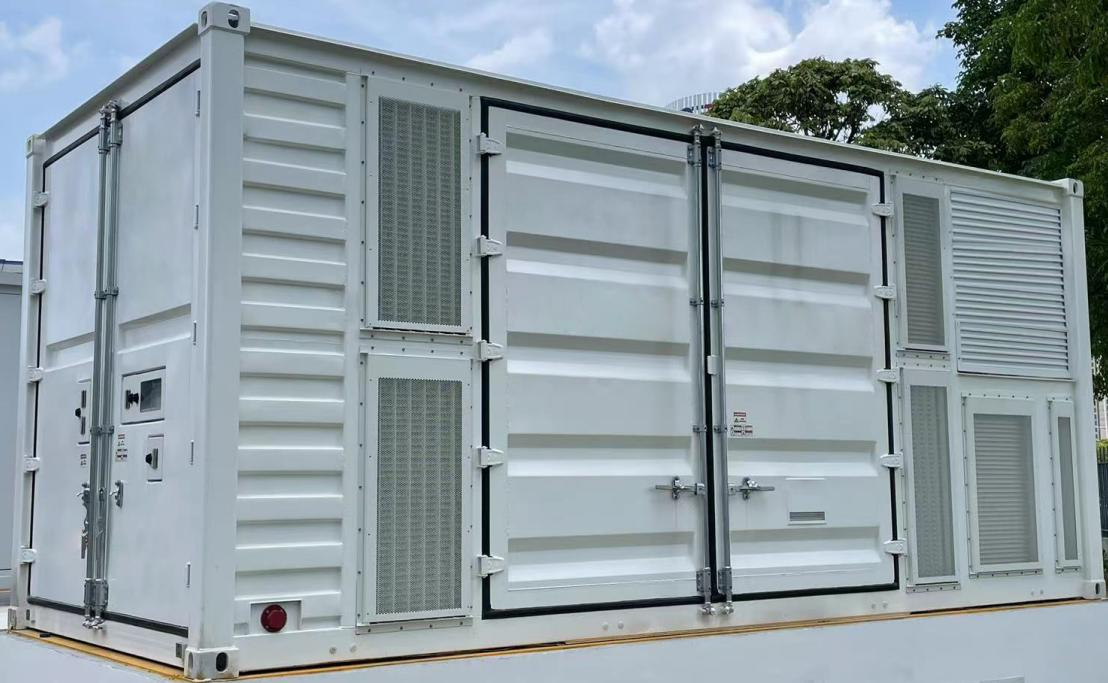

battery storage system containers

2.064mwheach container,20inch container

10pcs

2

Grid-connected distribution cabinetg

connect energy storage system with Grid

3pcs

3

Box-type step-up transformer

SCB13-2000KVA

5pcs

4

solar panels

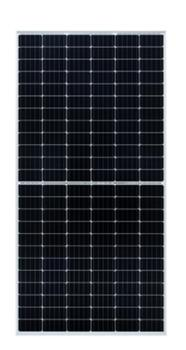

size:2278*1134*35550WDC:49.5v

10910pcs

5

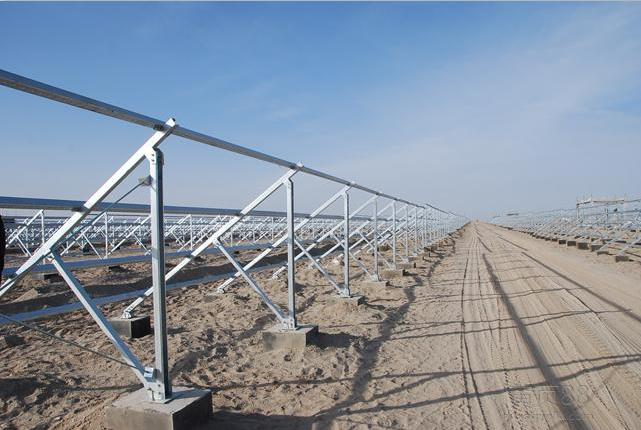

Photovoltaic supports and cables

as attached photovoltaic supports

1set

6

Photovoltaic Grid-connected distribution cabinee

connect solar plant with battery storage system

5pcs

7

Photoboltaic inverter

100kw

60pcs
