1. Battery Cell
Battery cell: lithium iron phosphate(Li-FePO4)
Current/Voltage: 280Ah/3.2V
Charge/discharge rate: 0.5C @＠25℃±3

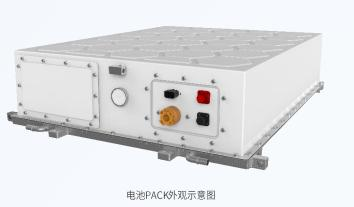

2. Battery Pack (52 cells connected in series to form a battery pack)
|
NO |
Name |
Unit |
Specification |
|
1 |
Cell |
/ |
LF280K |
|
2 |
Nominal voltage per box |
V |
166.4 |
|
3 |
Single box power |
KWh |
46.5 |
|
4 |
Single box weight |
Kg |
330 |
|
5 |
Single box size |
MM |
1067*585*240 |
|
6 |
Single box series and parallel number |
/ |
1P52S |
|
7 |
Rated Capacity |
Ah |
280 |
|
8 |
Energy density |
Wh/Kg |
>140 |
|
9 |
Cooling method |
/ |
Liquid cooling |

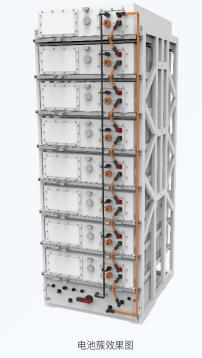

3. Battery Cluster (5 battery packs connected in series to form a battery cluster)
|
NO |
Name |
Unit |
Specification |
|
1 |
Nominal voltage |
V |
832 |
|
2 |
Nominal power |
KWh |
232.5 |
|
3 |
Seres and parallel connection |
/ |
1P260S |
|
4 |
Chargeldischarge efficiency |
/ |
≥92% |
|
5 |
Low voltage power supply |
W |
≈200 |
|
6 |
Communication mode |
/ |
CAN2.0 |
|
7 |
Weight |
KG |
≈2000 |
|
8 |
Overall Dimension |
MM |
862*1074*2374 |
|
9 |
Cooling method |
/ |
Liquid cooling |

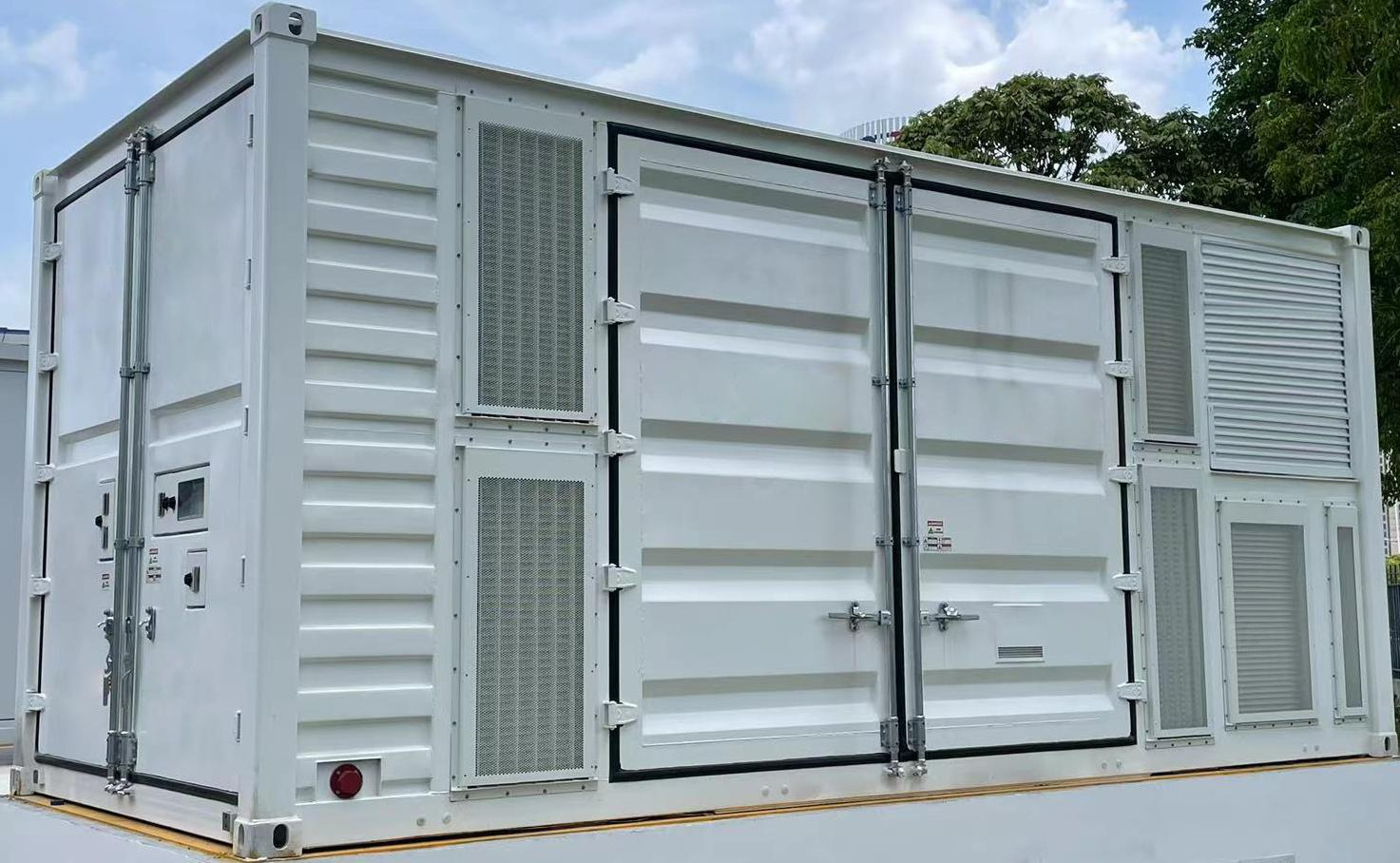

4. Battery energy storage system container(8 Battery clusters+PCS,20 inch container)
|
NO |
Name |
Unit |
Specification |
Mark |
|
1 |
Nominal voltage |
V |
832 |
|
|
2 |
Nominal power |
KWh |
1860 |
@25℃±3 |
|
3 |
Voltage Range |
V |
675-949 |
|
|
4 |
Recommended SOC Window |
% |
10-90 |
|
|
5 |
Nominal charge/discharge power |
KW |
300 |
|
|
6 |
Charging Temperature |
℃ |
0-50 |
|
|
7 |
Discharge Temperature |
℃ |
-20-50 |
|
|
8 |
Recommended environment Temperature |
℃ |
25℃±10 |
|
|
9 |
Thermal Management |
/ |
Liquid cooling |
|
|
10 |
Dimension |
mm |
6058*2896*2438mm |
20inch |
|
11 |
DCDC |
Pcs |
0 |
0 |
|
12 |
PCS |
pcs |
50KW*8 |
8PCS |
|
13 |
Liquid Cooled Conditioner |
pcs |
30KW |
|
|
14 |
Output Voltage |
V |
400 |
|
|
15 |
Output Frequency |
HZ |
50/60 |
|
|
16 |
Fire Fighting System |
|
Hot Air Melt Level 3 Fire Protection |
|
|
17 |
BMS |
|
3 level-Management |
|
|
18 |
EMS |
|
Battery Energy Manaaement System |
|
|
PCS is 50KW *8pcs,AC output is 400V |
||||
1.8mwp solar Plant include 3274pcs solar panels+1set Photovoltaicsupports and cables+6pc Photovoltaic Grid-connected distributioncabinets+18 pcs Photoboltaic inverter

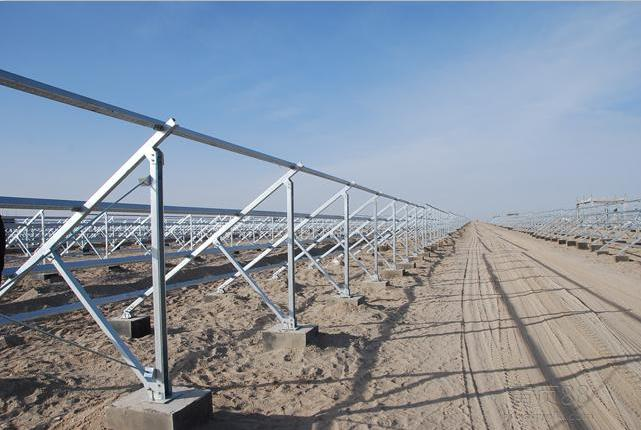

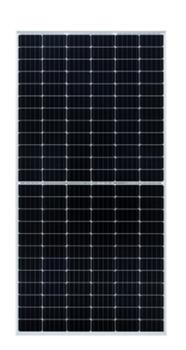

solar panels Photovoltaic supports
0.3mw/5.58mwh battery energy storage system+1.8mwp solar plant, during peak solar hours,we will use 0.3MW to power the load,and then the rest (1.8 MW 0.3MW=1.5MW) will be used to charge the batteries.(solar plant charge about 4hours then the battery energy storage system will be full)
|
|
Parts name |
Specification |
Qty |
|
1 |
battery storage system container |
1.86mwh each container,20inch container |
3pcs |
|
2 |
Grid-connected distribution cabinet |
connect energy storage system containers with Grid or Load |
3pcs |
|
4 |
solar panels |
size:2278*1134*35550W |
3274pcs |
|
5 |
Photovoltaic supports and cables |
as above attached photovoltaic supports photo |
1set |
|
6 |
Photovoltaic Grid-connected distribution cabinets |
connect solar plant with battery storage system |
6pcs |
|
7 |
Photoboltaic inverter |
100kw 400V |
18pcs |
