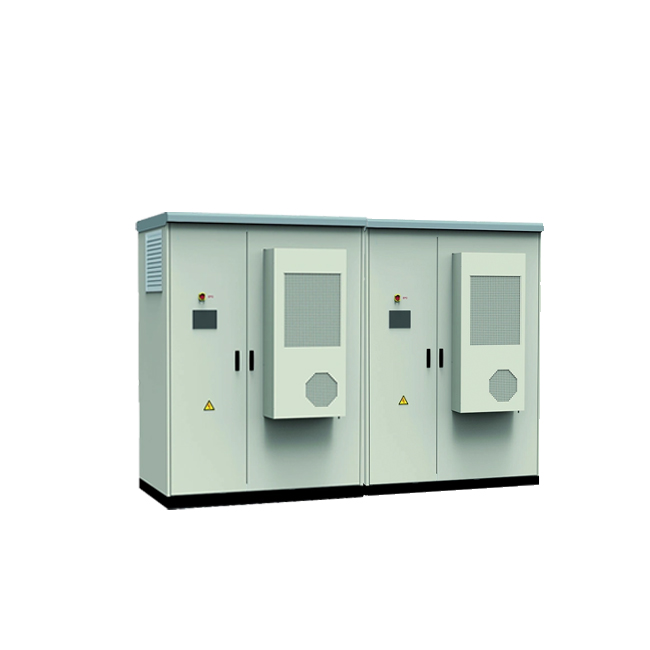

200kw 430kWh Air Cooling Integrated Commercial and Industrial Energy Storage System Cabinet

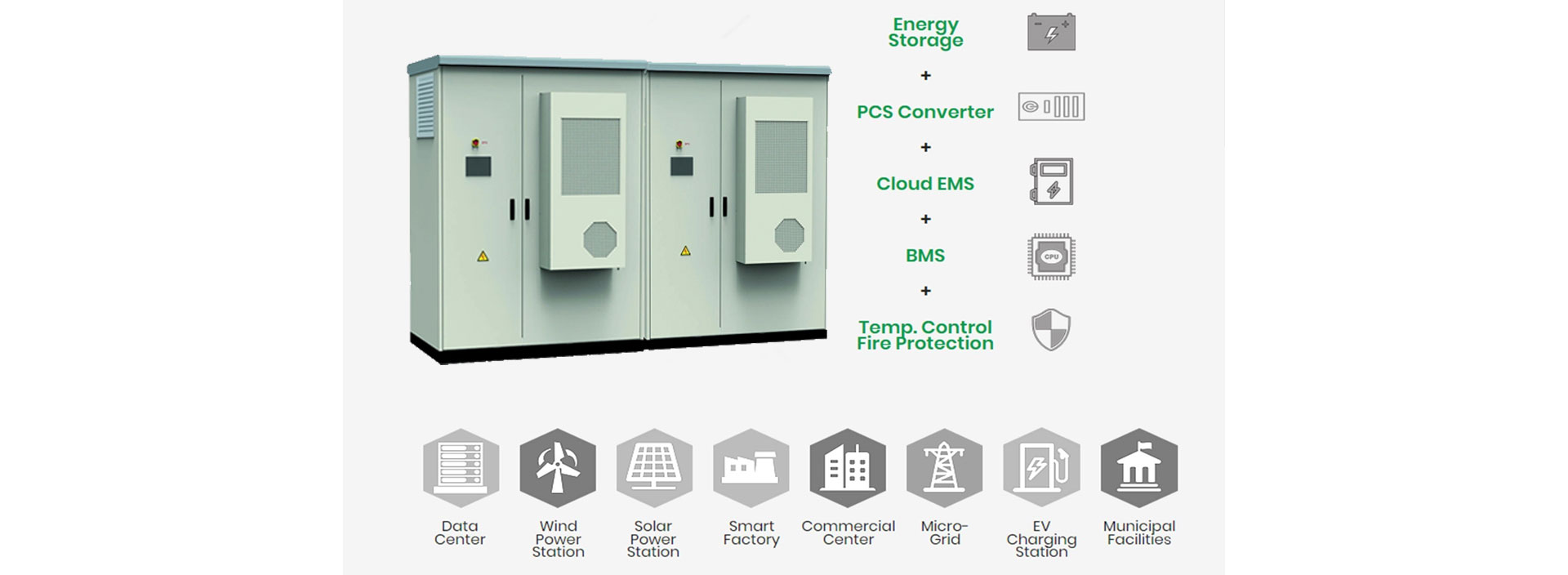

This 430kWh Sinostorage outdoor integrated battery energy storage system (BESS) includes lithium battery clusters, Battery Management System (BMS), cluster control box, Power Conversion System (PCS), Energy Management System (EMS), temperature control and fire protection system, water door magnetic and monitoring communication to fully control the system operation status and risks. The core of the technology is the design of the battery pack, the battery cluster structure, the thermal design of the battery system, the protection technology of the battery system, and the BMS.

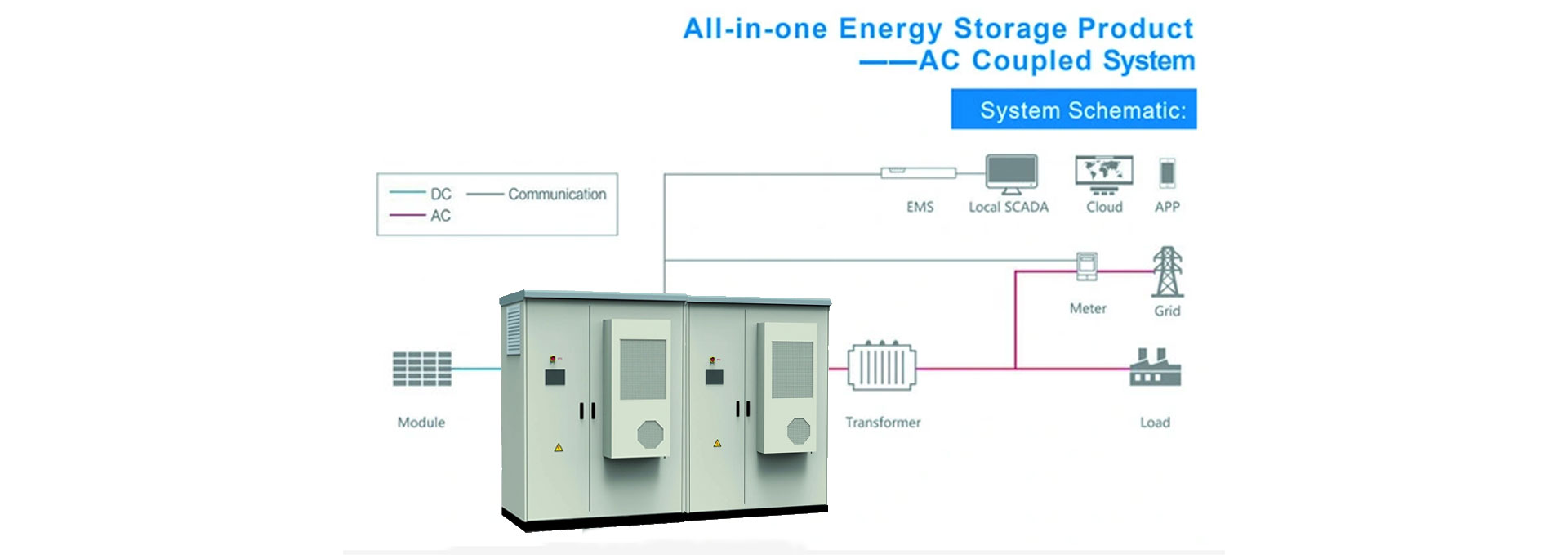

The all-in-one energy storage system (ESS) adopts lithium iron phosphate batteries as energy carriers, which is used to charge and discharge through PCS to achieve a variety of energy exchange with the power grids, diesel generator and other renewables. The output of the energy storage cabinet can be connected to grid, to supply various load equipment and electric vehicle chargers. The output of the battery system is controlled and protected by the cluster control box and connected to the DC side of the PCS.

This separate off-grid power generation system adopts：

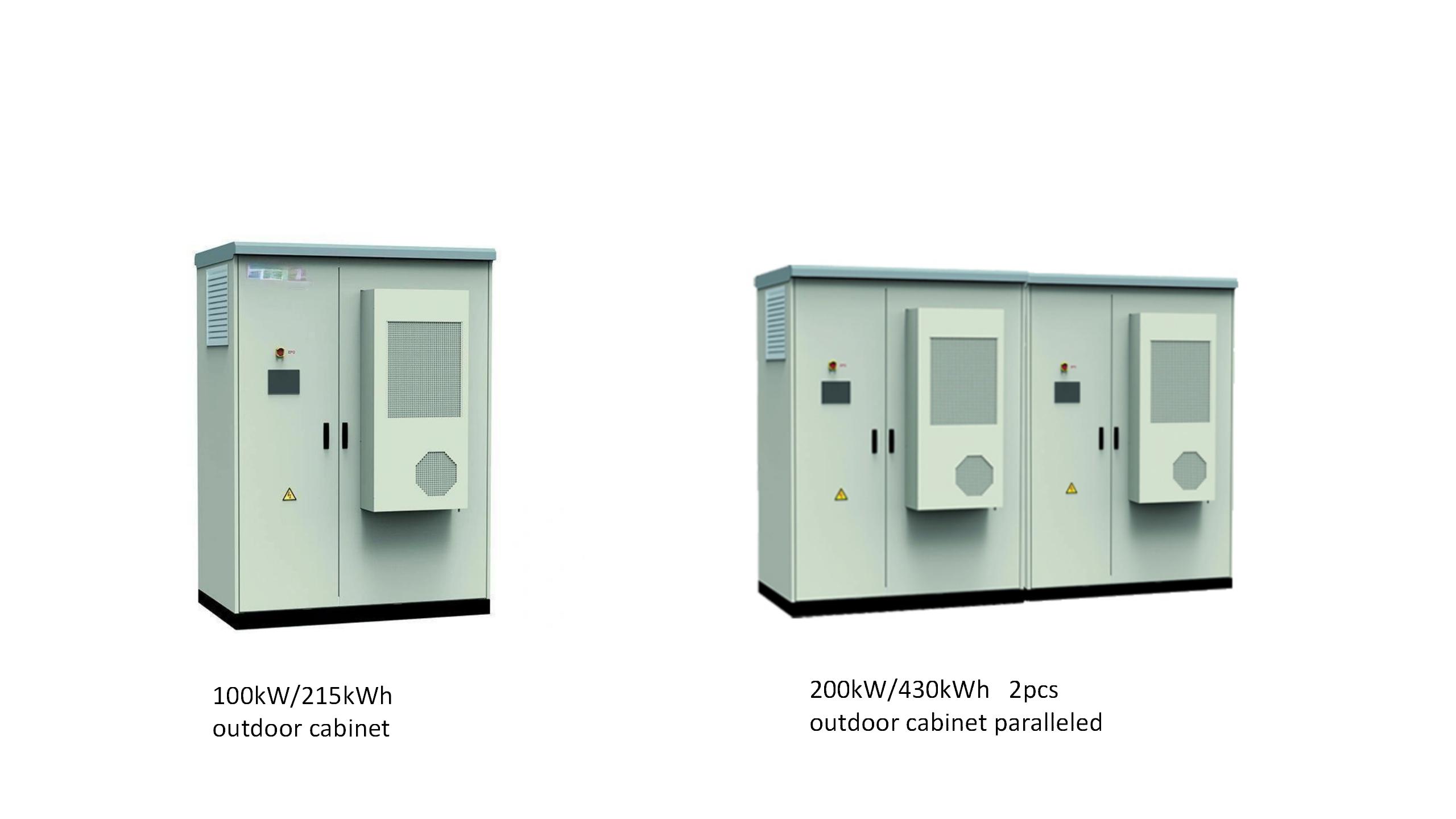

Integrated energy storage system cabinet-All-IN-ONE cabinet (215kwh 100kw)*2set）

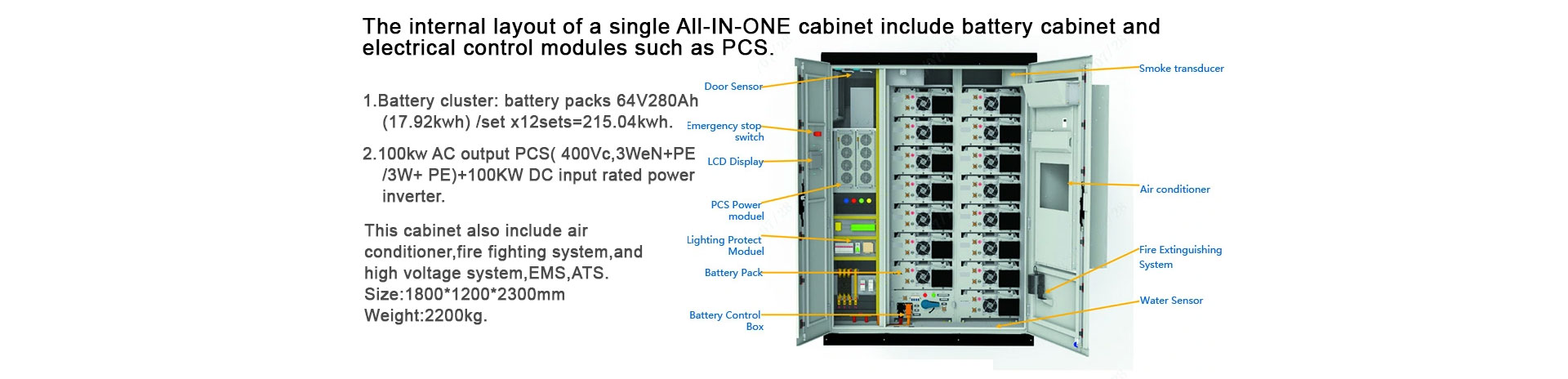

A：The battery cabinet， integrates 1 clusters of battery packs, each cluster of battery pack has a power of 215.04kWh+BMS High voltage managements system+cooling system +fire fighting system+EMS+ATS,isolation transformer.
B：PCS, with AC rated output power 100KW (2sets of DC-AC conversion modules)+DC input rated power 100KW (2sets of DC-DC conversion module).
